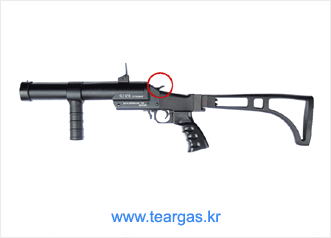

SJ-103 40mm TEAR GAS LAUNCHER

HOME > LAUNCHER > SJ-103 40mm TEAR GAS LAUNCHER

TRADE TERMS


	Min. order quantity	100 units

	Production capacity	700 units/month

	Payment terms	30% T/T in advance, 70% balance after inspection

	Packaging details	Standard packing for export

	Shipping port	Busan, Korea

	Origin	Materials and technique are absolutely made in Korea

SPECIFICATION

Brand	KDI LTD.	Model	SJ-103
Country of Manufacturer	Korea	Raw Materials Origin	Korea
Caliber Diameter	40mm	Launcher Length	Folded:450mm, Not Folded:705mm
Barrel Length	300mm	Height	157mm
Weight	1.8 kg	Raw Materials	Caliber : Aluminum (same to M16 rifle) Body : Aluminum (same to M16 rifle) Butt plate : Synthetic butt plate (Same to M16)
Method of Operation	Top Break	Manufacturing Method	Cutting by the power lathe(not moulding)
Storage	Cool&dry Place in Shade	Shelf Life	7 years
Marking	Buyer's Option on Free	Quality Guaranteed	Free after service within one(1) year
Certificates	ISO 9001	Main User	Korea Police Administration, Korea Navy
Export Countries	Turkey, Saudi Arabia, Bahrain, Dubai, Israel, Egypt, Georgia, Kuweit, Liberia, Macedonia, Jordan, Ghana, Nigeria, Sudan, Malawi, Uganda, Nepal, Myanma

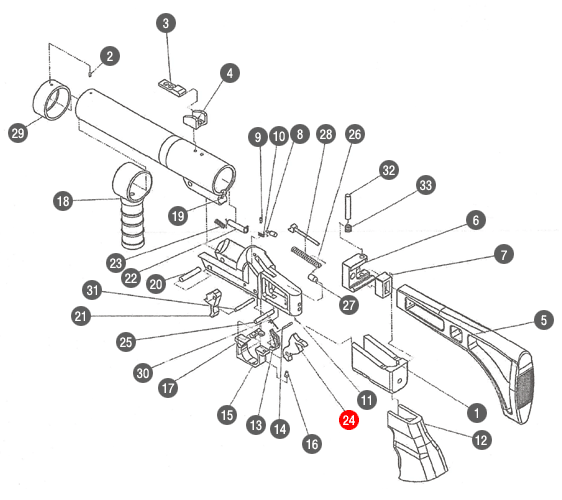

STRUCTURE & PARTS

01	Firing engine cap	02	Front sight	03	Front sight
04	Rear sight support	05	Synthetic butt plate	06	Butt plate folder A
07	Butt plate folder B	08	Firing pin	09	Firing pin bolt
10	Firing pin spring	11	Firing engine	12	Rear grip
13	Trigger	14	Trigger pin	15	Trigger guard
16	Trigger guard fixing bolt	17	Trigger safety pin	18	Front grip
19	Barrel	20	Barrel fixing pin	21	Barrel fixing
22	Empty shell ejection lever	23	Empty shell ejection spring	24	Firing pin hammer (outside)
25	Hammer pin	26	Hammer spring	27	Hammer spring cap
28	Hammer spring support	29	Muzzle cap	30	Trigger spring
31	Barrel lock fixing pin	32	Butt plate folder pin	33	Butt plate folder spring

HOW TO USE



Stan by	Full the below lever	Open the breech	Load a shell



Load a shell	Touch the trigger	Pull the trigger	Fire a shell

INTRODUCTION

The SJ-103 launcher is a single-shot, shoulder-fired launcher that fires a tear gas shell and rubber ball shells. The SJ-101 can fire a wide variety of 38mm, 40mm rounds, including explosive, anti-personnel, smoke, buckshot, flechette, and illumination.
Tear Gas Grenade Launcher are a great aid and highly effective in early dispersing and suppressing crowds such as riots, illegal gatherings, and mass demonstrations.

FEATURES

The SJ-103 launcher was intended to be used as close fire support for point and group area targets. The round is designed to be effective at penetrating windows, blowing up doors, producing casualties in groups of enemies, destroying bunkers, and damaging or disabling soft-skinned vehicles.
Its primary purpose is to engage enemies in dead space that cannot be reached by direct fire. In addition, the SJ-101 can be used as a crowd control weapon when equipped with the CS grenade.
It's a lightweight so saves the strength of user. The foldable butt plate makes the soldier can more easily use and carry it. In emergencies, it's convenience makes it easier to respond early and quickly to riots.
